What is Knob And Tube Wiring?

Knob and tube wiring consists of individual copper conductors known as “knobs” and “tubes.” The hot (black) and neutral (white) wires are run separately and spaced apart, passing through porcelain insulators called knobs and tubes. The knobs support the wires as they pass through walls and ceilings, while the tubes encase the wires where they pass through framing members. This system provides insulation and reduces the risk of electrical shorts. The separate hot and neutral wires enable electricity to flow through the circuit, with the current returning through the neutral wire. However, knob and tube wiring lacks the protective sheathing found in modern wiring systems, making it less safe and more prone to damage over time.

Knob and tube wiring, while once considered innovative, is not considered safe by modern standards. The lack of insulation and the potential for degradation over time pose significant safety concerns. The porcelain knobs and tubes can become brittle, leading to exposed live wires and an increased risk of electrical shock or fire. Building codes in many jurisdictions, including Ontario, prohibit the installation of new knob and tube wiring. If you have knob and tube wiring in your home, it is advisable to have it evaluated by a licensed electrician and consider replacing it with a modern and safer electrical system.

The legality of knob and tube wiring depends on the specific building codes and regulations in each jurisdiction. In many areas, including Ontario, Canada, knob and tube wiring is no longer allowed for new construction due to safety concerns. It is important to consult local electrical codes and regulations to determine the legality of knob and tube wiring in a specific location. If you have knob and tube wiring in your home, it is generally recommended to have it evaluated by a licensed electrician to ensure compliance with local regulations and address any safety issues.

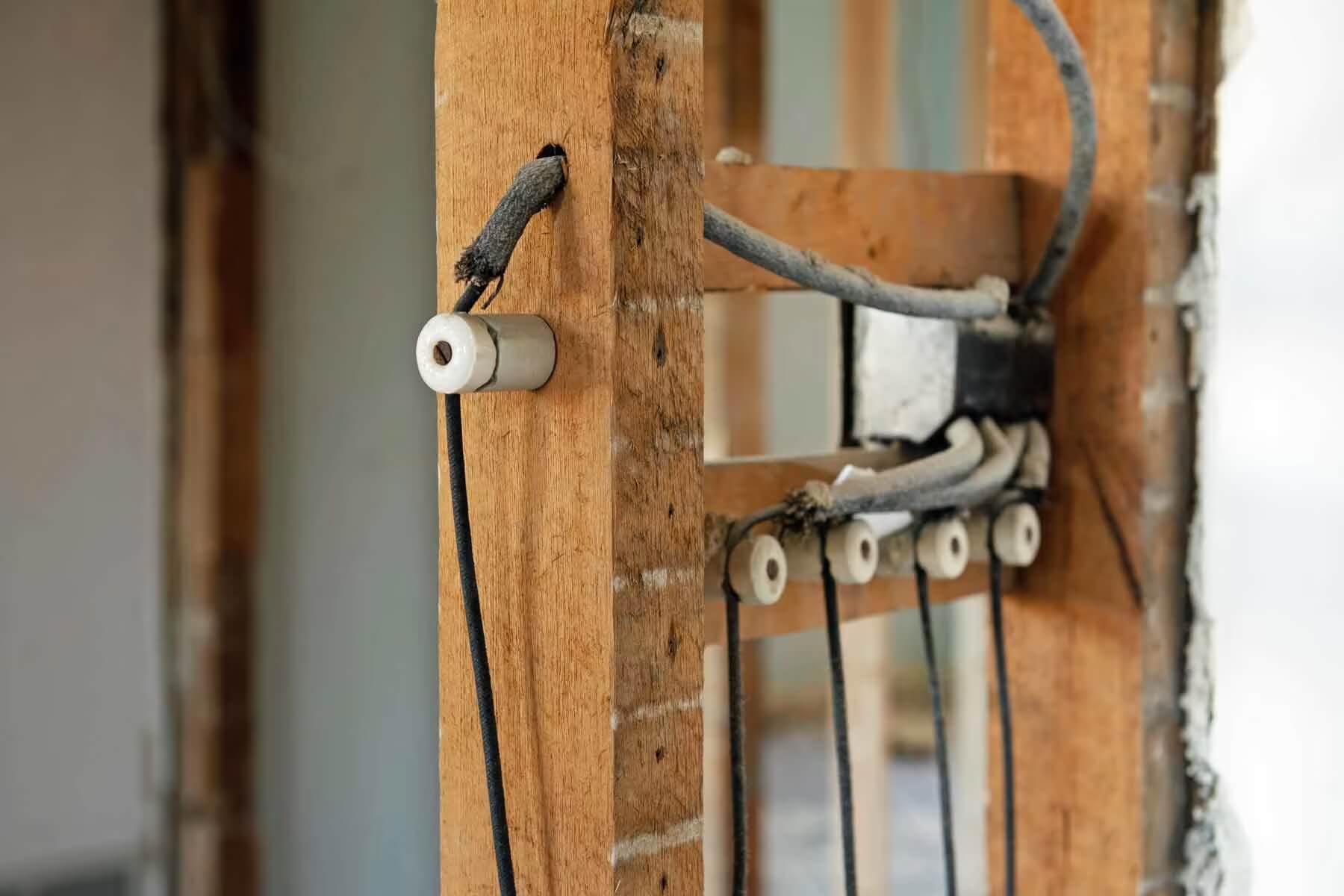

Knob and tube wiring consists of individual copper conductors supported by porcelain insulators called “knobs” and “tubes.” Knobs are typically small, white, and shaped like spools or cylinders. They are used to secure the wires to wall studs or joists. Tubes, on the other hand, are cylindrical and hollow, and they encase the wires where they pass through holes in framing members. The wires themselves are separate and run parallel to each other, with the hot and neutral wires spaced apart for insulation. Overall, knob and tube wiring has a distinct and recognizable appearance due to the porcelain components and exposed wires.

To identify knob and tube wiring in a home, you can follow these steps:

1. Start by turning off the power to the area where you suspect knob and tube wiring is present.
2. Carefully inspect the electrical system in the attic, basement, or crawl space. Look for porcelain knobs and tubes that support the wiring running along the structural elements of the building.
3. Check for individual copper wires running separately, without a protective sheath, and spaced apart.
4. Look for junction boxes that may have been added later to connect modern wiring to the knob and tube system.
5. If you have access to outlets and switches, remove the cover plates and inspect the wiring connections. Knob and tube wiring may have visible porcelain tubes where the wires enter the wall.
6. If you are unsure or want a more accurate assessment, consult a licensed electrician who can perform a thorough inspection and identify the presence of knob and tube wiring in your home. They will have the expertise to confirm its existence and advise on the best course of action for your electrical system.

Knob and tube wiring is considered dangerous for several reasons. Firstly, the insulation materials used in this outdated wiring system can degrade over time, increasing the risk of electrical shock or fire. Secondly, the lack of a protective sheath makes the wiring vulnerable to damage from rodents, renovations, or accidental contact, further increasing the risk of electrical hazards. Additionally, the porcelain knobs and tubes can become brittle and crack, exposing the live wires and posing a significant safety threat. Overall, these factors make knob and tube wiring a potential danger and highlight the importance of replacing it with a modern electrical system.

Knob and tube wiring is considered bad for several reasons. Firstly, its insulation materials degrade over time, making the wiring susceptible to electrical shorts, shocks, and fires. The lack of a protective sheath increases the risk of damage from rodents, renovations, or accidental contact. Additionally, the system’s design does not meet modern electrical demands and safety standards. Knob and tube wiring is no longer installed in new construction, and many building codes prohibit its use. It is generally recommended to have it evaluated by a licensed electrician and, in many cases, replaced with a modern electrical system for improved safety and compliance.

Removing knob and tube wiring is a complex task that should be carried out by a licensed electrician. The process typically involves several steps. First, the electricity to the affected circuits must be turned off at the main electrical panel. Then, the electrician will carefully remove the porcelain knobs, tubes, and wiring while minimizing damage to the surrounding structure. New electrical wiring, along with proper insulation and protective sheathing, will be installed to replace the knob and tube system. It is crucial to hire a professional to ensure the safe and proper removal of knob and tube wiring while adhering to local electrical codes and regulations.
